Comatose

Processing and Parametricism
Parametricsism’s advantage is in its ever-changing form influenced by controlled variables. Predictable randomness in multiple runs of the same script allows for variations of the same idea. Parametricism’s disadvantage is in its inability to have a predefined finality. Thus the challenge becomes when and why the operator stops the scripting process to output a final form which is able to be manifested into an architectural reality.
​
Comatose.

Constraints were valuable in our exploration of script making. We found that with enough desirable constraints; the script would slow down or even stop producing new geometries at a certain frame. The final script used in the form produced below was selected from a series of sixteen. It was chosen for its representational qualities of the forces written in the script.

The script itself is based on two species of points which interact with each other. They are drawn together but stay at a consistent distance from each other. Two resisting agents are also present; producing a sphere of vacant space best seen in plan. New points are divided from existing points at predetermined times with a higher potential of growing in the Z-Axis. A gravity force is used to ensure that the ground plane is defined and translatable to a physical construction.
​
For manifestation purposes: two nearby points are joined by line, three closed lines form plane. The separate species are differentiated by color with higher opacities as the system moves upward in the Z-Axis.
​

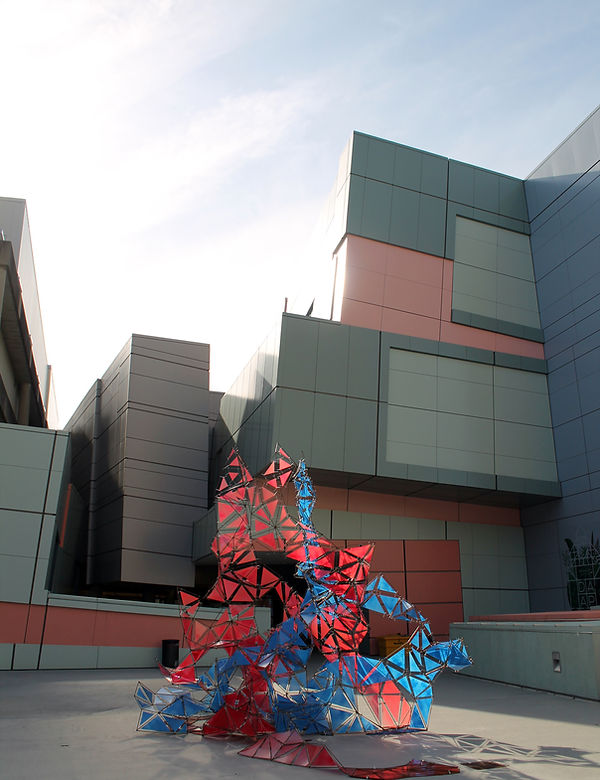

Fabrication
Point is manifested as 3/8" ball bearings, line as 1/4" steel rod and plane as painted acetate. Lines are welded to points and planes are plastic loop attached to lines. Planes which touch the ground plane are made of steel rather than acetate to allow the installation to remain bottom heavy. These steel panels are metal zip tied to the frame. The blue and red species are each constructed of 5 - 8 separate welded frames attached with metal zip ties. This allows for quick assembly and disassembly.

The frames were welded in ~4 weeks with paneling taking an additional 3 days. The installation can be assembled in 45 minutes and disassembled in 20 minutes.

Winner of DAAPWorks 2016 Director's Choice: Architectural Group Project

Design Build Studio
Spring 2016
In collaboration with Michael Ferguson, Laura Kennedy and Caleb Lang
Instructor Christoph Klemmt
all imagery self produced unless otherwise noted
